Wafer Ring
Stainless steel and plastic wafer rings for semiconductor dicing, taping and die bonding processes.
Product Overview
Our wafer rings are precision-engineered for semiconductor packaging, dicing and die bonding processes. Manufactured from high-grade SUS420J2 stainless steel or lightweight anti-static plastic, these rings serve as secure outer frames during wafer grinding and dicing operations. With high flatness, hardness and corrosion resistance, our wafer rings can be repeatedly cleaned and recycled — making them both environmentally friendly and cost-effective.
Applications
Key Features
Product Types

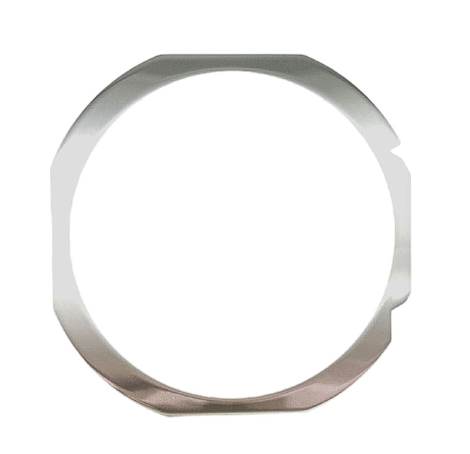

8" Wafer Ring
Stainless steel wafer ring for 8-inch (200mm) wafers. Used in semiconductor packaging, taping and dicing processes as the outer frame during wafer grinding and cutting. Can be directly shipped after dicing.
| Product Code | XH-M200 |
| Dimensions | 290(L) x 290(W) x 1.5(H) mm |
| Weight | 200g |
| Capacity | 1 PCS |
| Wafer Size | 8 inch (Φ200mm) |
| Material | SUS420J2 |

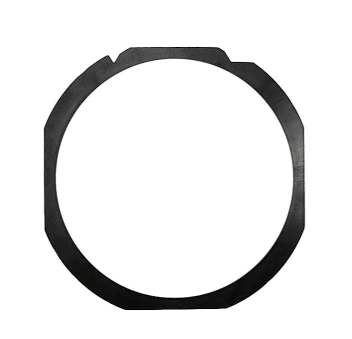

8" Plastic Frame
Lightweight anti-static plastic frame for 8-inch wafers. Designed for use with wafer dicing machines, providing secure wafer fixation during grinding and dicing. Features lightweight construction and anti-static properties.
| Product Code | XH-P200 |
| Dimensions | 290(L) x 290(W) x 1.5(H) mm |
| Weight | Lightweight (plastic) |
| Capacity | 1 PCS |
| Wafer Size | 8 inch (Φ200mm) |
| Material | Anti-Static Plastic |

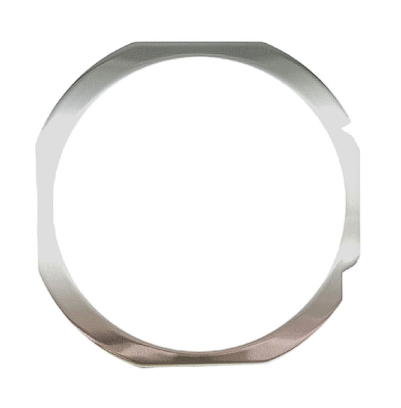

6" Wafer Ring
Stainless steel wafer ring for 6-inch (150mm) wafers. Used in semiconductor packaging, taping and dicing processes. High flatness and hardness with excellent corrosion resistance and scratch protection.
| Product Code | XH-M150 |
| Dimensions | 230(L) x 230(W) x 1.5(H) mm |
| Weight | 150g |
| Capacity | 1 PCS |
| Wafer Size | 6 inch (Φ150mm) |
| Material | SUS420J2 |

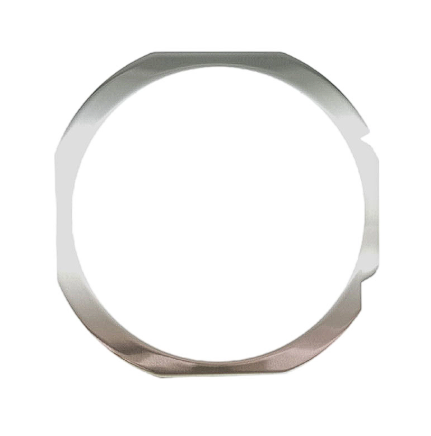

12" Wafer Ring
Stainless steel wafer ring for 12-inch (300mm) wafers. Used in semiconductor packaging, taping and dicing processes. Manufactured from SUS420J2 with high flatness, hardness and corrosion resistance.
| Product Code | XH-M300 |
| Dimensions | 380(L) x 380(W) x 1.5(H) mm |
| Weight | 300g |
| Capacity | 1 PCS |
| Wafer Size | 12 inch (Φ300mm) |
| Material | SUS420J2 |
Available Materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Available Sizes | 6", 8", 12" |
| Materials | SUS420J2 Stainless Steel, Anti-Static Plastic |
| Thickness | 1.5mm |
| Hardness | HRC50-55 |
Customization Available
Customized specifications are available according to customer requirements. Contact us to discuss your specific needs.
